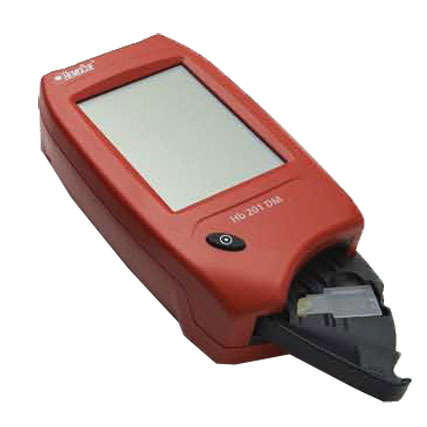

Hemoglobin Hb 201 DM System

Enhanced Patient Safety and Simplified Workflow

HemoCue’s Hb 201 DM system offers the lab accuracy and ease of use that has become a standard in Hb point-of-care testing, plus improved patient safety with features like QC lockout and built-in barcode scanning for patient ID. Through bi-directional communication and flexible settings, the Hb 201 DM system offers a complete data management solution for Hb testing and anemia screening in blood banks, hospitals, primary care and public health.

With dedicated support and service as well as unmatched training and education based on over 30 years of experience, you can count on HemoCue for the right solutions for all your needs. Accuracy Starts With Us

Improve Your Administrative Workflow

• Seamlessly interface with existing network using POCT-1A
• Simplify billing
• Ensure regulatory compliance

Safeguard Patient Testing and Data

• Link patient information and comments with test result
• Reduce errors with automatic result transfer
• Gain full data storage

Get Easy Access to Lab-Quality Accuracy

• Precise factory calibration against the ICSH reference method
• Patented microcuvette technology with excellent lot-to-lot reproducibility
• Brief training with virtually no maintenance

Data Entry

• Touch-screen display
• Built-in barcode scanner

Interface Capabilities

• Interface with existing network using POCT1-A (CIC standard), USB or DMS software
• Docking solution enables connection of up to 5 analyzers

Configurable Functions

• Operator ID, Patient ID, Lot ID, Site ID
• Patient comments
• Critical value alerts
• STAT testing

Result Storage

• 4,000 patient/STAT tests, 500 QC tests, 500 analyzer logs, 200 patient IDs

DMS Software

• Patient and QC reports

Quality Control Data Management

• QC lock-out
• QC scheduling
• Linearity and proficiency testing

Data Entry

• Touch-screen display
• Built-in barcode scanner

Interface Capabilities

• Interface with existing network using POCT1-A (CIC standard), USB or DMS software
• Docking solution enables connection of up to 5 analyzers

Configurable Functions

• Operator ID, Patient ID, Lot ID, Site ID
• Patient comments
• Critical value alerts
• STAT testing

Result Storage

• 4,000 patient/STAT tests, 500 QC tests, 500 analyzer logs, 200 patient IDs

DMS Software

• Patient and QC reports

Quality Control Data Management

• QC lock-out
• QC scheduling
• Linearity and proficiency testing

Principle

• Modified azidemethemoglobin reaction; dual wavelengths (570 nm and 880 nm) for compensation of turbidity

Calibration

• Factory calibrated against the ICSH reference method; needs no further calibration

Sample Material

• Capillary, venous or arterial whole blood

Measurement Range

• 0–25.6 g/dL (0–256 g/L, 0–15.9 mmol/L)

Results

• Within 60 seconds

Sample Volume

• ~10 µL

Dimensions

• Analyzer: 170 × 50 × 93 mm (6.70 × 1.97 × 3.66 inches)
  Docking Station: 135 x 206 x 61 mm (5.30 × 8.10 × 2.40 inches)

Weight

• Analyzer: 350 g (0.77 pounds) with batteries installed
  Docking Station: 566 g (1.24 pounds)

Storage Temperature

• Analyzer: 0–50°C (32–122°F) Microcuvettes: unopened 15–30°C (59–86°F); three-month open vial stability

Operating Temperature

• 15–30°C (59–86°F)

Power Options

• Internal rechargeable batteries or docking station with AC adapter

Quality Control

• Built-in “selftest”, optional liquid controls
