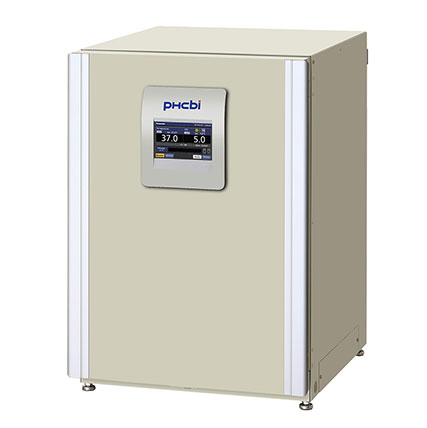

PHCbi Healthcare Cell IQ™ CO2 Incubators
The Next Generation of Incubator Technology
The Cell IQ™ incubator is designed for demanding and regulated applications in the biomedical, pharmaceutical, medical research and clinical laboratory. With a new touchscreen control panel that delivers improved usability, improved interior structure and technology for rapid cleaning, and proprietary infrared sensors for stabilizing temperature, CO2, and humidity, the Cell IQ™ CO2 series is the new generation of incubators for all your research needs.
Rapid CO2 Density Recovery
Proprietary IR2 sensor achieves ultrafast CO2 recovery without overshoot, even following multiple door openings.
The patented Direct Heat and Air Jacket system works with the IR2 sensor to provide precise temperature and CO2 levels, respectively. InCu-saFe and SafeCell UV function together to prevent contamination.
Germicidal Interior- InCu-saFe copper enriched, stainless steel alloy offers germicidal properties of elemental copper without corrosion or discoloration.
Time-Saving Decontamination
Optional PHCbi Healthcare high speed decontamination system uses hydrogen peroxide (H2O2) vapor to safely clean the chamber in less than three hours, while providing 100% kill rate with at least a six log reduction of major contaminants.
Contamination Control - Isolated UV lamp decontaminates circulated air and the humidity water reservoir without harming the cultured cells.
Improved Use and Maintenance

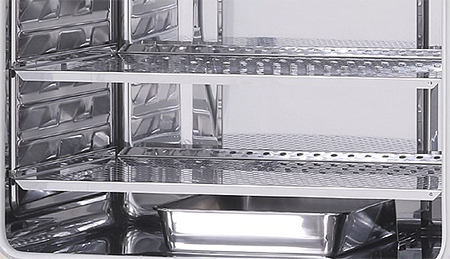

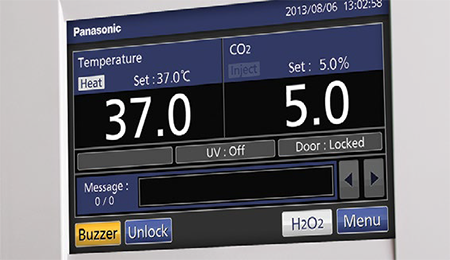

A color LCD touchscreen delivers full control, even with gloved hands, while a standard USB port makes log data transfer to PC convenient. The CO2 incubator offers integrated shelf channels with minimal parts for easy cleaning.
Intuitive Control - Control panel interface allows for easy programming of temperature, CO2 and other internal conditions of your incubator.
(R = Remote Alarm, V = Visual Alarm, B = Buzzer Alarm)
Power Failure
R
Temperature Deviation
V-B-R
High Temperature
V-B-R
CO2 Deviation
V-B-R
Door open
V-B
Electrical and Noise Level
Power Supply
V
115
Frequency
Hz
60
Noise Level3)
dB(A)
25
29
1) Exterior dimensions of main cabinet only, excluding handle and other external projections
2) +0.25°C; ambient temperature 23°C, setting 37°C, CO2 5%, no load
3) Nominal value
PHCbi Healthcare Cell IQ™ CO2 Incubators
The Next Generation of Incubator Technology
The Cell IQ™ incubator is designed for demanding and regulated applications in the biomedical, pharmaceutical, medical research and clinical laboratory. With a new touchscreen control panel that delivers improved usability, improved interior structure and technology for rapid cleaning, and proprietary infrared sensors for stabilizing temperature, CO2, and humidity, the Cell IQ™ CO2 series is the new generation of incubators for all your research needs.
Rapid CO2 Density Recovery
Proprietary IR2 sensor achieves ultrafast CO2 recovery without overshoot, even following multiple door openings.
Precise and Repeatable Environment
The patented Direct Heat and Air Jacket system works with the IR2 sensor to provide precise temperature and CO2 levels, respectively. InCu-saFe and SafeCell UV function together to prevent contamination.
Germicidal Interior- InCu-saFe copper enriched, stainless steel alloy offers germicidal properties of elemental copper without corrosion or discoloration.
Time-Saving Decontamination
Optional PHCbi Healthcare high speed decontamination system uses hydrogen peroxide (H2O2) vapor to safely clean the chamber in less than three hours, while providing 100% kill rate with at least a six log reduction of major contaminants.
Contamination Control - Isolated UV lamp decontaminates circulated air and the humidity water reservoir without harming the cultured cells.
Improved Use and Maintenance
A color LCD touchscreen delivers full control, even with gloved hands, while a standard USB port makes log data transfer to PC convenient. The CO2 incubator offers integrated shelf channels with minimal parts for easy cleaning.
Intuitive Control - Control panel interface allows for easy programming of temperature, CO2 and other internal conditions of your incubator.
/Customer/esscin/specpages/CellIQ.pdfCell IQ Brochurehttps://www.phchd.com/us/biomedical/PHC Biomedical/Customer/esscin/specpages/MCO-170AIC.pdfMCO-170AICL Spec Sheet/Customer/esscin/specpages/MCO-230AIC.pdfMCO-230AICL Spec Sheet
Precise and Repeatable Environment
The patented Direct Heat and Air Jacket system works with the IR2 sensor to provide precise temperature and CO2 levels, respectively. InCu-saFe and SafeCell UV function together to prevent contamination.
Germicidal Interior- InCu-saFe copper enriched, stainless steel alloy offers germicidal properties of elemental copper without corrosion or discoloration.
Time-Saving Decontamination
Optional PHCbi Healthcare high speed decontamination system uses hydrogen peroxide (H2O2) vapor to safely clean the chamber in less than three hours, while providing 100% kill rate with at least a six log reduction of major contaminants.
Contamination Control - Isolated UV lamp decontaminates circulated air and the humidity water reservoir without harming the cultured cells.
Improved Use and Maintenance
A color LCD touchscreen delivers full control, even with gloved hands, while a standard USB port makes log data transfer to PC convenient. The CO2 incubator offers integrated shelf channels with minimal parts for easy cleaning.
Intuitive Control - Control panel interface allows for easy programming of temperature, CO2 and other internal conditions of your incubator.
/Customer/esscin/specpages/CellIQ.pdfCell IQ Brochurehttps://www.phchd.com/us/biomedical/PHC Biomedical/Customer/esscin/specpages/MCO-170AIC.pdfMCO-170AICL Spec Sheet/Customer/esscin/specpages/MCO-230AIC.pdfMCO-230AICL Spec Sheet
Model
MCO-230AIC
MCO-170AIC
UV
UVH
UV
UVH
External Dimensions (W x D x H)1)
inches mm
30.3 x 28.7 x 35.6 770 x 730 x 905
24.4 x 28.0 x 35.4 620 x 710 x 900
Internal Dimensions (W x D x H)
inches mm
25.3 x 20.6 x 27.6 643 x 523 x 700
19.3 x 20.6 x 26.2 490 x 523 x 665
Volume
cu.ft. | L
8.1 | 230
5.8 | 165
Net Weight
kg | lbs.
198 | 90
176 | 80
Performance
Temperature Control Range and Fluctuation
°C
Ambient +5 to +50, ±0.1
Temperature Uniformity2)
°C
±0.25
CO2 Control Range and Fluctuation2)
%
0 to 20, ±0.15
Humidity Level and Fluctuation
%RH
95, ±5
Control
Temperature Sensor
Thermistor
CO2 Sensor
Dual Filter IR
Display
LCD Touch Screen
Construction
Exterior Material
Painted Steel (rear cover not painted)
Interior Material
Stainless Steel Copper-Enriched Alloy
Insulation Material
Polystyrene
Heating System
Direct Heat and Air Jacket System
Outer Door
qty
1
Outer Door Lock
Optional
Included
Optional
Included
Field Reversible Door
Included
Inner Door
qty
1 x Sealing Tempered Glass
Shelves
qty
4 x Stainless Steel Copper Enriched Alloy
Shelf Dimensions (W x D x H)
inches mm
24.4 x 17.7 x 0.47 620 x 450 x 12
18.5 x 17.7 x 0.5 470 x 450 x 12
Max. Load per Shelf
lbs. | kg
15 | 7
Max. Total Load
lbs. | kg
60 | 28
45 | 21
Max. Shelf Capacity
qty
10
Access Port
qty
1
Access Port Position
Rear Upper Left
Access Port Diameter
inchesmm
1.230
Alarms
(R = Remote Alarm, V = Visual Alarm, B = Buzzer Alarm)
Power Failure
R
Temperature Deviation
V-B-R
High Temperature
V-B-R
CO2 Deviation
V-B-R
Door open
V-B
Electrical and Noise Level
Power Supply
V
115
Frequency
Hz
60
Noise Level3)
dB(A)
25
29
1) Exterior dimensions of main cabinet only, excluding handle and other external projections
2) +0.25°C; ambient temperature 23°C, setting 37°C, CO2 5%, no load
