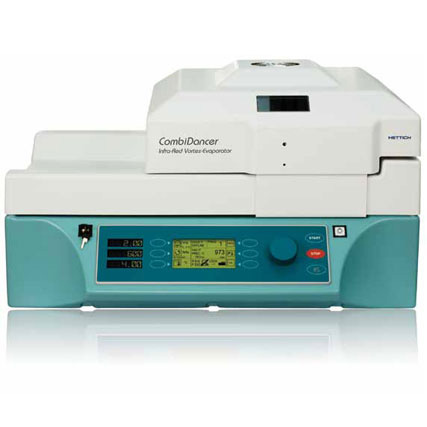

Hettich CombiDancer Vortex Vacuum Concentrator
A NON-CENTRIFUGAL CONCENTRATOR
The Hettich Vortex Vacuum Concentrator (HVC) is designed to remove solvents from samples while under vacuum. Unlike traditional centrifugal evaporation methods, the HVC uses a vortex motion with infrared heating and an intelligent vacuum pump to remove solvent from samples.
CONCENTRATOR FEATURES
The picture demonstrates the Hettich Vacuum Concentrator with sliding lid (robot friendly) and the loading of the heated base plate with attached universal rack. The rack will then sit in the 316 stainless steel chamber attached via its magnetically coupled feet. After the rack is loaded the lid will close and the evaporation process will begin.
The HVC offers 3 types of heating for constant and consistent sample temperatures.
Ceramic infrared heaters built into the lid of the HVC
Interior chamber wall heating to prevent condensation
An optional base plate heater with a range of 20° to 40°C
The heating is activated by a temperature probe inside the evaporation chamber that is set by the user to the desired sample temperature. As evaporation occurs and the sample cools and the heating is activated to maintain the sample set temperature.
Automation
The HVC was designed to be robotic friendly with its RS232 connectivity, programmability and ability for robotic arms to have easy access to the sample. The lid of the HVC slides to the left completely exposing the sample chamber, this provides easy interfacing for robotics.
Sample Racks & Base Plate
A variety of racks are available for the HVC to accommodate both microplates, tubes and microtubes plus any combinations of the above. A number of custom accessories are available such as to purge inert gases onto a microplate.
Quality Construction
Utilizing the most current technology, Hettich manufactures its products to meet the latest in industry quality standards. All Hettich products go through rigorous in-house testing. Product quality tests are supervised by the major governing bodies (i.e. TUV) to ensure the highest level of safety in manufacturing. The metal components that make up our products go through a variety of stress tests and are studied to determine risk and product life cycle.
765 x 695 x 470 mm (lid closed)930 x 695 x 470 mm (lid open)
Weight
80 kg
Power source
115 V, 60 Hz
Power consumption
1800 VA
Ports
3 x RS232 (VP, CT, PC)
Vacuum chamber: material
316 Stainless Steel (V4A)
Vacuum chamber: diameter / height
360 mm / 180 mm
Connector: vacuum pump
DN25
Connector: release / inert gas inlet
6 mm stainless steel Swagelok fitting
Vortex speed
20° to 40°C
Temperature control range
V0 plastic UL-listed
